濟南萬中大功率扭剪扳手
Jinan Wanzhong high power torsion shear wrench
大功率扭剪扳手，X30J-2扭剪扳手適用于m16-30六種扭剪螺栓，鋼結構高強螺栓扭剪螺栓專用扳手，整機質保兩年，套筒終生保用（套筒壞了換新）
High power torsion shear wrench, x30j-2 torsion shear wrench is applicable to six kinds of M16-30 torsion shear bolts, and special wrench for steel structure high-strength bolts torsion shear bolts. The whole machine is guaranteed for two years, and the socket is guaranteed for life (the socket is replaced free of charge if it is broken)

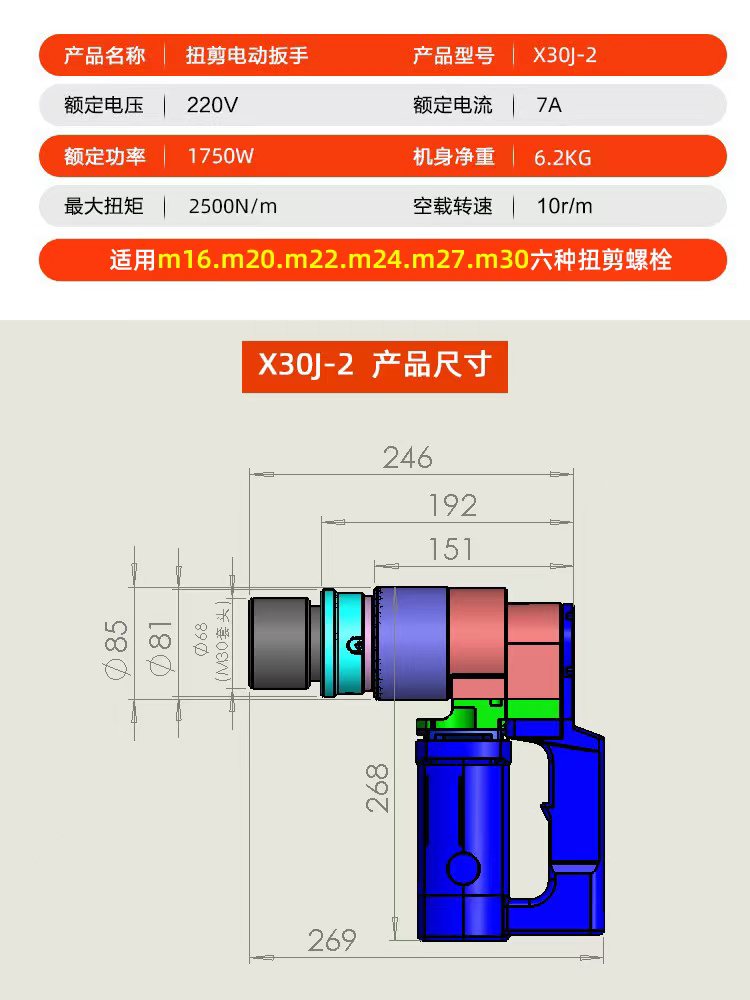

X30J-2扭剪扳手
X30j-2 torsion shear wrench
功率：1750W
Power: 1750W
電壓：220V
Voltage: 220V
轉速：10r
Speed: 10R
重量：6.3KG
Weight: 6.3kg
電動扭剪扳手是一種終緊扭剪型高強度螺栓的工具，一般有電動扭剪扳手和手動扭剪扳手，其中電動扭剪扳手比較常見，扭剪型螺栓目前廣泛用于建筑鋼結構安裝行業，也有少部分用于汽車組裝，下面就給大家具體的介紹一下電動扭剪扳手工作原理。
Electric torsional shear wrench is a tool for final tightening of torsional shear type high-strength bolts. Generally, there are electric torsional shear wrench and manual torsional shear wrench, of which electric torsional shear wrench is more common. Torsional shear bolts are widely used in the construction steel structure installation industry, and a small part of them are used in automobile assembly. Here is a specific introduction to the working principle of electric torsional shear wrench.
電動扭剪扳手的應用：扭剪型高強螺栓的初緊可使用沖擊電動扳手或定扭矩扳手,而終緊需要使用扭剪扳手，所以扭剪扳手是專門終緊扭剪型高強螺栓的。
Application of electric torsional shear wrench: impact electric wrench or constant torque wrench can be used for initial tightening of torsional shear high-strength bolts, while torsional shear wrench is required for final tightening, so torsional shear wrench is specially used for final tightening of torsional shear high-strength bolts.
電動扭剪扳手的工作原理：電動扭剪扭扳手配有內外兩個套管，外套筒扭螺母，對螺栓施加扭矩，內套筒方向扭梅花頭，兩個扭矩大小相等，方向相反，尾部梅花頭擰掉，然后抽出扳手扣動扳機將梅花頭彈出，即結束工作。
Working principle of the electric torsional shear wrench: the electric torsional shear wrench is equipped with two inner and outer sleeves, and the outer sleeve is used to twist the nut. Torque is applied to the bolt, and the inner sleeve is used to twist the plum blossom head. The two torques are equal in size and opposite in direction, until the tail plum blossom head is screwed off, and then the wrench is pulled out to pull the trigger to eject the plum blossom head, which is the end of the work.
電動扭剪扳手相對來說操作方便，降低工人的勞動強度，提高了工作效率，現在市場上電動扳手廠家眾多，選擇一家好的電動扳手廠家十分重要。
The electric torsional shear wrench is relatively easy to operate, reduces the labor intensity of workers and improves the work efficiency. Now there are many electric wrench manufacturers in the market. It is very important to choose a good electric wrench manufacturer.
