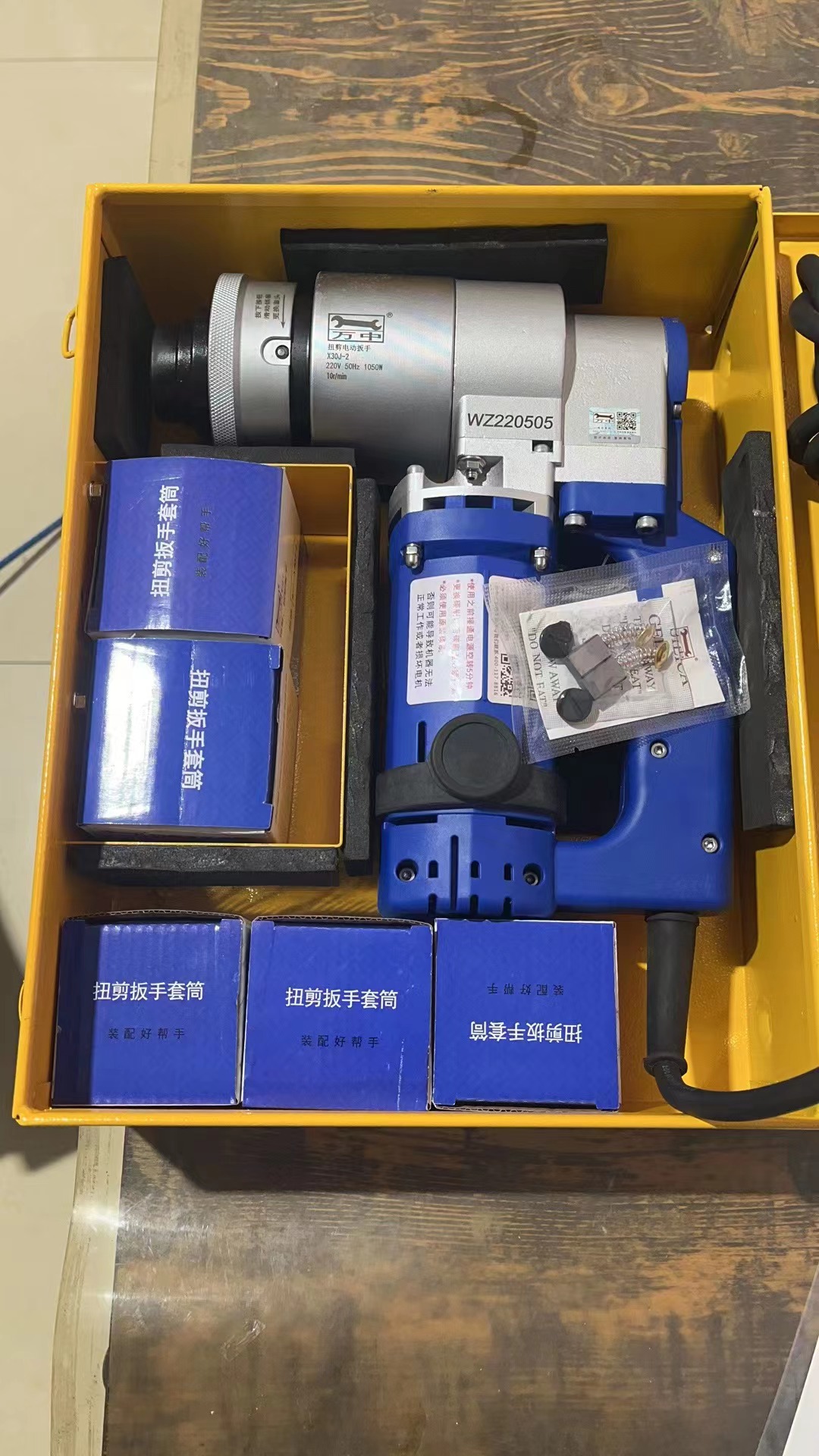

用于高強度螺栓初擰、復擰和終擰的電動扭矩扳手，裝置前有必要行查看標定，承認其精度在答應誤差范圍內，才干投人運用。電動扭矩扳手查看標定的需求如下:1，高強度螺栓緊固前后，均應對電動扭矩扳手進行查看標定，并承認其精度。 關于大型節點，高強度螺栓擰緊應分為初擰、復擰和終擰，不得省掉。復擰扭矩值應等于初擰扭矩值。
For the electric torque wrench used for initial, re and final tightening of high-strength bolts, it is necessary to check and calibrate it before installing it, and only after confirming that its accuracy is within the allowable error range can it be put into use. The requirements for checking and calibrating the electric torque wrench are as follows: 1. Before and after tightening the high-strength bolts, the electric torque wrench should be checked and calibrated, and its accuracy should be recognized. For large joints, the tightening of high-strength bolts shall be divided into initial tightening, re tightening and final tightening, which shall not be omitted. The re tightening torque value shall be equal to the initial tightening torque value.
2.電動扭矩扳手標定精度:用于查看的扳手為運用扭矩的t3%，用于施工的扳手為運用扭矩的土5% 高強度螺栓不經初擰直接終擰，大型節點不經初擰、復擰直接終擰關于同一節點的高強度螺栓米用初擰的意圖在于:一是為使節點銜接板疊到達密貼;二是為了削減先擰與后擰的高強度螺栓的預拉力的區別。假如不初擰直接終擰必然使終擰后的螺栓預拉力值受到丟失，螺栓間的預拉力值區別較大，影響銜接節點的剛度和強度。
2. Calibration accuracy of electric torque wrench: the wrench used for checking is t3% of the applied torque, and the wrench used for construction is 5% of the applied torque. High strength bolts are directly and finally tightened without initial tightening, and large nodes are directly and finally tightened without initial tightening and re tightening. The purpose of initial tightening for high-strength bolts at the same node is: first, to make the joint plate stack close; The second is to reduce the difference between the pretension of high-strength bolts screwed first and then. If the bolts are directly final tightened without initial tightening, the pretension value of the bolts after final tightening will be lost, and the pretension value between bolts will be greatly different, which will affect the stiffness and strength of the joint.
關于大型節點，高強度螺栓數量較多，先擰與后擰造成的螺栓預拉力值區別更大，初擰可使銜接板疊到達密貼，但不足以這些區別。因而有必要再次復擰一次以補償初擰預拉力丟失，并鏟除螺栓間預拉力值區別。關于這類節點，假如初擰后不通過復擰，直接終擰，也會影響銜接節點的剛度和強度高強度螺栓銜接節點的緊固，應通過初擰和終擰。初擰扭矩值為終擰扭矩值，初擰扭矩具體需求如下: 高強度螺栓的緊固進程也是銜接板疊密貼的進程，一起因為銜接板密貼變形時會影響螺栓群各個先后緊固的螺栓預拉力值的改變，因而高強度螺栓緊固不按次序，會影響銜接板疊不密貼和各螺栓預拉力值的離散度加大。
For large joints, there are many high-strength bolts, and the difference between the pre tension value of bolts caused by first tightening and then tightening is greater. The initial tightening can make the joint plate stack close, but it is not enough to eliminate these differences. Therefore, it is necessary to re tighten again to compensate for the loss of pretension during initial tightening and to eliminate the difference in pretension between bolts. For this type of joints, if the initial tightening is not through re tightening, and the direct final tightening will also affect the stiffness and strength of the joint. The fastening of the joint with high-strength bolts should be through the initial tightening and final tightening. The initial tightening torque value is the final tightening torque value, and the specific requirements of the initial tightening torque are as follows: the tightening process of high-strength bolts is also the process of splicing plates. Because the deformation of the splicing plates will affect the change of the pre tension value of the bolts tightened successively in the bolt group, so the tightening of high-strength bolts is not in order, which will affect the cohesion of the splicing plates and increase the dispersion of the pre tension value of each bolt.
